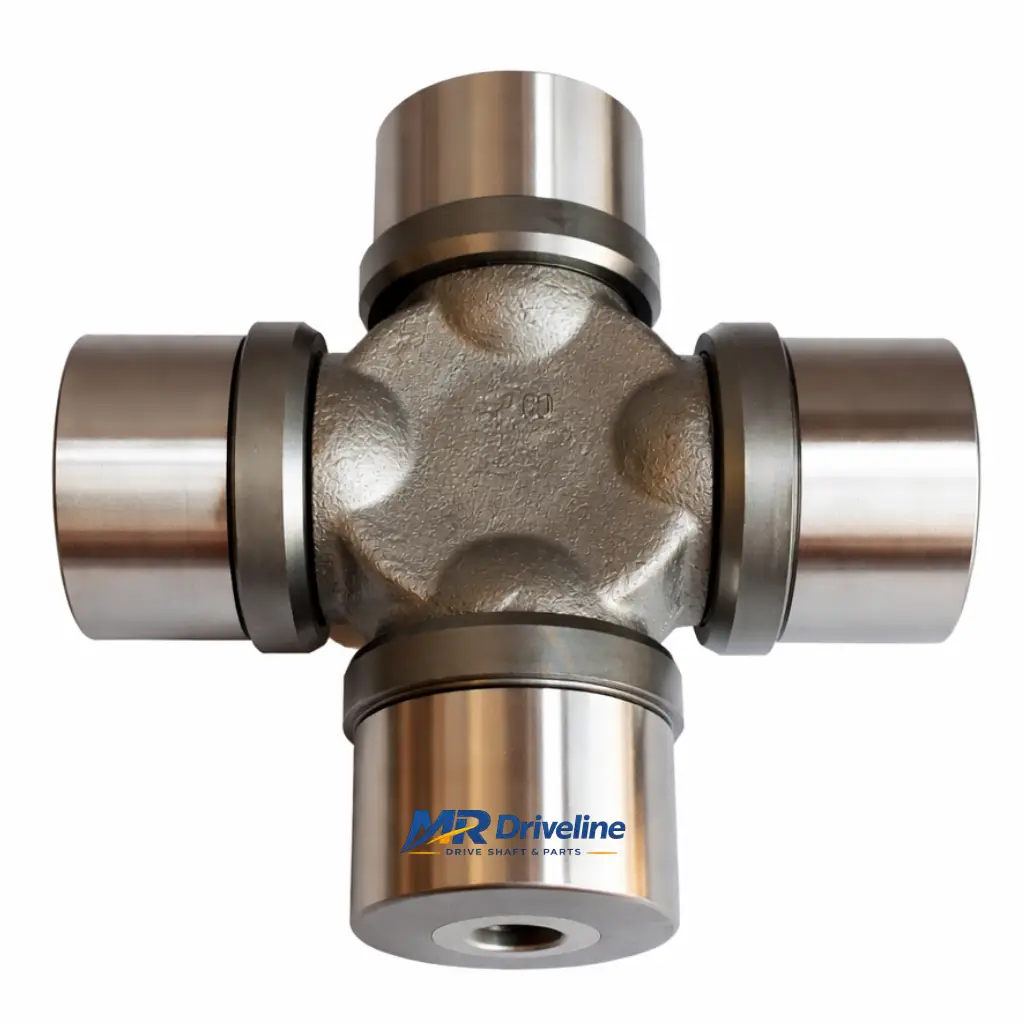

392.60 Universal Joint 95x160mm SWP285 U-joint

Description

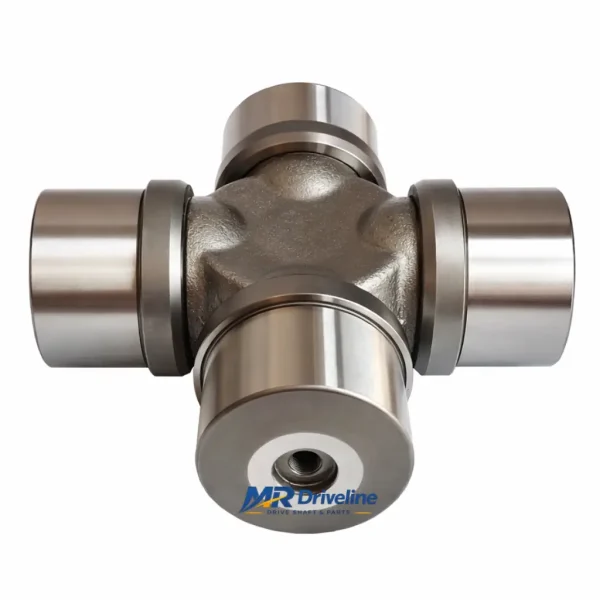

95x160mm Industrial Universal Joint | GWB 392.60 | SWP285

 392.60 Universal Joint / SWP285   – 95x160mm Inside Circlip Universal Joint – Heavy Duty Industrial Driveshaft U-Joint (Cap & Bolt Design)

Our premium 95x160mm Inside Circlip Universal Joint is the exact match for GWB 392.60 universal joint and SWP285 series. This heavy-duty industrial U-joint features an internal snap ring (inside circlip) design with cap & bolt / split yoke construction, delivering exceptional strength and reliability in the most demanding high-torque applications.

Precise Specifications:

• Bearing Cap Diameter: 95.00 mm
• Lock-up / Span: 160.00 mm
• Design: Inside Snap Ring (Internal Circlip) + Cap & Bolt (Split Yoke) – circlips and bolts included
• Material: High-grade 20CrMnTi alloy steel (upgrade options available)
• Max Operating Angle: Suitable for industrial driveshafts
• Torque Rating: Functional limit 150,000 Nm | Fatigue torque 53,000 Nm
• Weight: Approx. 12–15 kg (depending on configuration)
• Lubrication: Greaseable or service-free options available

Complete Cross Reference:

• GWB / GKN: 392.60 universal joint, 292.60
• Chinese Standard: SWP285
• Welte: WD20165
• Kop-Flex / Rexnord: UMKT285 / 285 series
• Sicit: BR 90
• Aftermarket: 392.60 kit, H60AX, GU-39260

Compatible Applications: Perfect for heavy industrial driveshafts in construction machinery, mining equipment, large commercial vehicles, MAN/Mercedes heavy trucks with GWB shafts, paper mills, steel plants, and other high-torque industrial power transmission systems.

Why Choose Our 95x160mm SWP285 / GWB 392.60 U-Joint?

• 100% dimensional match to OEM GWB 392.60 for perfect drop-in fit
• Inside circlip design for maximum strength in confined spaces
• Premium 20CrMnTi material for superior wear resistance and long service life
• Competitive wholesale pricing with fast global shipping
• ISO-certified quality – trusted by European and industrial fleets
