SWC Industrial Cardan Shaft / cardan spindle
Material:35CrMo
Can be made as forging or casting
SWC Industrial Cardan Shaft / cardan spindle
Material:35CrMo
Can be made as forging or casting

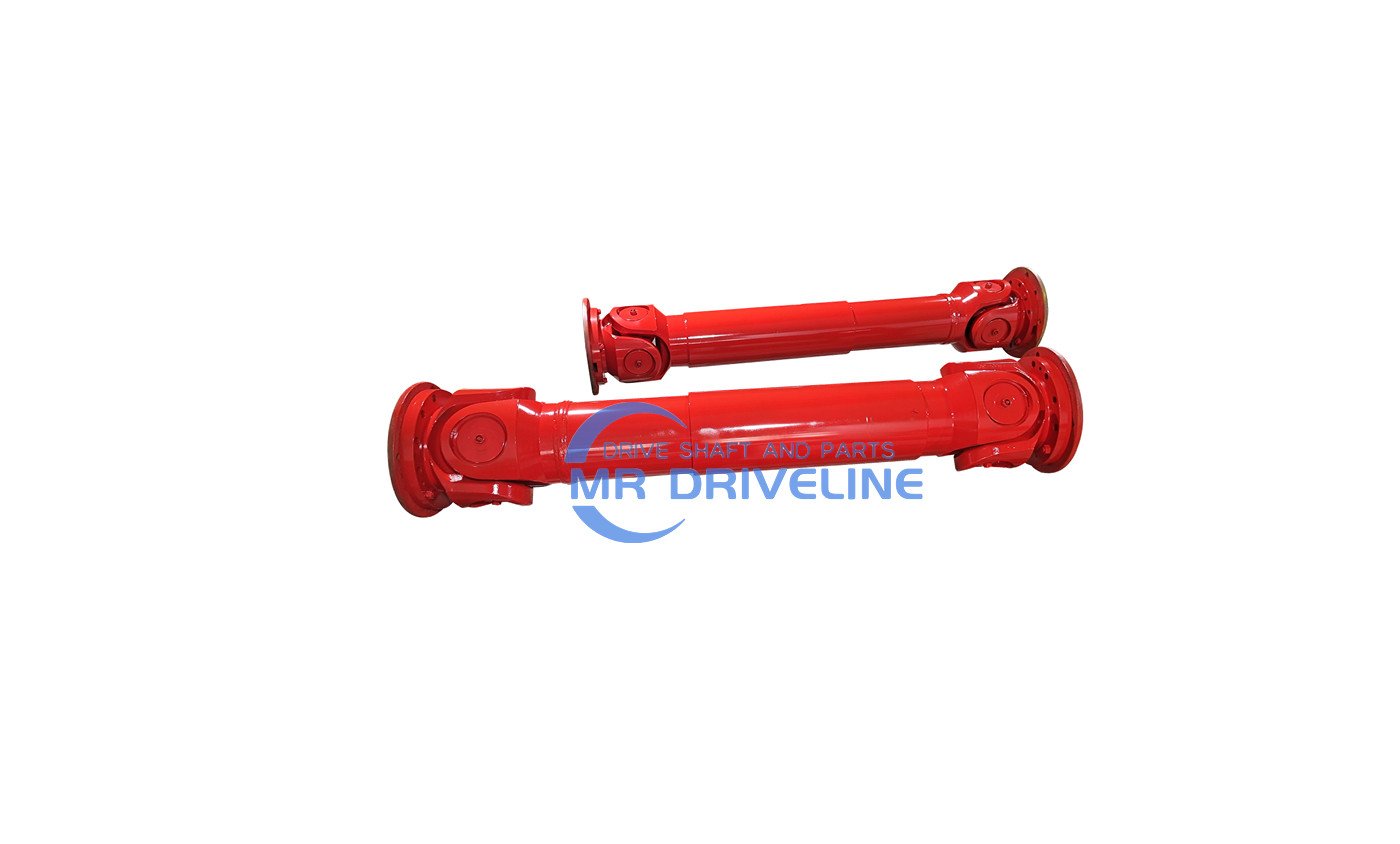

SWC industrial Cardan Shaft / heavy duty drive shaft / universal joint shaft / cardan spindle
The SWC industrial cardan shaft : a category with the most compact structure, the largest bearing capacity and the highest operational reliability in the universal joint family.
The SWC industrial cardan shaft uses the outside snap ring industrial universal joint
Please check the tunnel shaft products page to have a look it and also welcome to visit our facebook page.
Model | Gyration dia. D | Nominal angular force Tn kN • m | Fatigue angular force TK kN • m | Axis angle b | Dimensions mm | ||||||||
D1 | D2 H7 | D3 | L1 | n-d | E | E1 | b h9 | h 2 | |||||
SWC100 | 100 | 1.25 | 0.63 | 25° | 84 | 57 | 60 | 55 | 6-9 | 7 | 2.5 | – | – |
SWC120 | 120 | 2.5 | 1.25 | 25° | 102 | 75 | 70 | 65 | 8-11 | 8 | 2.5 | – | – |
SWC150 | 150 | 5 | 2.5 | 25° | 130 | 90 | 89 | 80 | 8-13 | 10 | 3 | – | – |
SWC180 | 180 | 22.4 | 11.2 | 25° | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | – | – |
SWC225 | 225 | 56 | 28 | 15° | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9 |
SWC250 | 250 | 80 | 40 | 15° | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 |
SWC285 | 285 | 120 | 58 | 15° | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15 |
SWC315 | 315 | 160 | 80 | 15° | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15 |
SWC350 | 350 | 225 | 110 | 15° | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16 |
SWC390 | 390 | 320 | 160 | 15° | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18 |
SWC440 | 440 | 500 | 250 | 15° | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20 |
SWC490 | 490 | 700 | 350 | 15° | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 |
SWC550 | 550 | 1000 | 500 | 15° | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 |
SWC620 | 620 | 1400 | 840 | 15° | 555 | 380 | 426 | 340 | 10-38 | 55 | 12 | 100 | 25 |
SWC heavy duty drive shaft
