24.06×88 mm staked universal joint with a hot-forged cross body and four bearing cups. Supplier-marked dimensions; confirm actual cup diameter and yoke fit before ordering. Contact MR Driveline for a quotation.
24.06×88 mm Staked Universal Joint – Hot Forged
Description

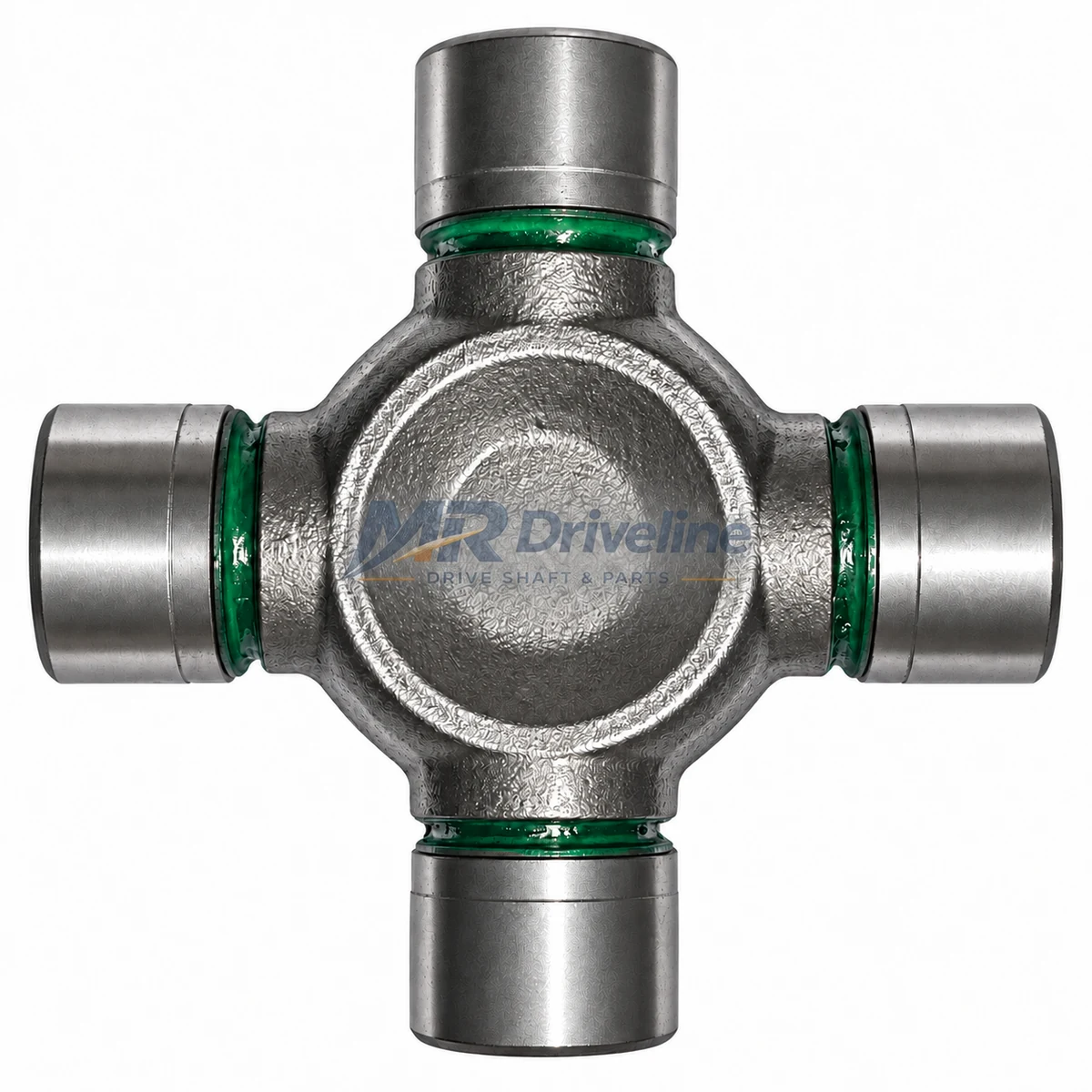

The 24.06×88 staked universal joint from MR Driveline features a hot-forged cross body and a staked bearing-cup retention design. This product is identified by its supplier-marked 24.06 mm cup diameter and 88 mm overall span. The product photograph shows the central cross profile, four steel bearing cups and green sealing rings.
24.06×88 Staked Universal Joint Specifications
| Product | Universal joint / driveshaft cross |
|---|---|
| Supplier-marked cup diameter | 24.06 mm |
| Supplier-marked overall span | 88 mm |
| Cross manufacturing process | Hot forged |
| Retention type | Staked / crimped |
| Bearing cups | Four |
| Brand | MR Driveline |
Staked Retention and Installation
The bearing cups of a staked universal joint are retained by controlled deformation of the surrounding yoke material. Confirm that the original shaft uses this retention method before selecting a replacement. Installation should be performed by a driveshaft repair specialist with appropriate staking and centering equipment.
For the 24.06×88 staked universal joint, check both cup-to-cup spans, bearing-cup outside diameter, yoke bore fit, sealing arrangement and cross-body clearance against the original part or drawing. The supplier marking alone does not establish the machining tolerance or a validated vehicle application.
24×88 Catalogue References for Comparison
The following published catalogue references describe products listed as 24×88 mm. They are comparison references only; direct interchangeability with this supplier-marked 24.06×88 mm product has not been confirmed.
| Company / brand | Catalogue number | Listed size |
|---|---|---|
| F.B. Cardan | 2488 | 24×88 mm, staked |
| Universal Driveshafts (UDS) | UJ2488U | 24×88 mm, staked |
| Mako Driveshafts | UJ2488SD | 24×88 mm, crimp style |
| Beattys / Turret | 902488 | 24×88 mm, staked |
| febi bilstein | 38416 | 24×88 mm |
| FEBEST | ASBZ-209 | 24×88 mm |
A nominal 24 mm catalogue entry must not be assumed to have the same actual cup diameter as a 24.06 mm supplier marking. Please send the original part number, measured dimensions and photographs for comparison before ordering.
Frequently Asked Questions
What does hot forged mean for this product?
Hot forged identifies the manufacturing process of the cross body. Steel grade, hardness and load ratings should be specified separately when required for your application.
Is this an ordinary snap-ring universal joint?
This product is specified as a staked type. Select it for a verified staking arrangement and confirm the repair procedure with your driveshaft specialist.
Can it replace a 24×88 universal joint?
The catalogue size is close, but compatibility must be checked. The 0.06 mm difference between the listed diameters needs clarification through an actual measurement or a toleranced drawing.
What information is needed for a quotation?
Send your required quantity, original part number or shaft identification, cup diameter, overall spans and photos of the retention area. Include any requirements for packaging and delivery.
Request a Quote
For pricing and specification confirmation of the 24.06×88 staked universal joint, email ujshaft@gmail.com or contact WhatsApp +86 15257194902. Browse more MR Driveline products.
| Size / Model (mm) | Construction | Manufacturing Process | Catalogue References | Reference Size (mm) | Product Description / Matching Notes |
|---|---|---|---|---|---|
| 24.06 x 62.5 | Staked | Hot forged | F.B. Cardan 24625 | 24 x 62.5 | Hot-forged staked universal joint. Reference cup diameter differs; confirm actual cup diameter and yoke fit. |
| 24.06 x 74.5 | Staked | Hot forged | F.B. Cardan 24745; GMB GU-7280/4 | FB: 24 x 74.5; GMB: 24.06 x 74.40 | Hot-forged staked universal joint. Confirm cup diameter and span against the reference drawing. |
| 24.06 x 88 | Staked | Hot forged | F.B. Cardan 2488; febi 38416; FEBEST ASBZ-209; UDS UJ2488U | 24 x 88 | Hot-forged staked universal joint. Catalogue references list 24 mm cups; confirm actual diameter before replacement. |
| 27 x 88 | Staked | Hot forged | F.B. Cardan 2788; febi 38417 | 27 x 88 | Hot-forged staked universal joint. Confirm bearing-cup profile, seals and staking arrangement. |
| 27 x 81.75 | Steel bearing cups | Cold extruded | GMB GU-1000; F.B. Cardan 27817 / 27817IC | GMB: 26.99 x 81.75; FB: 27.01 x 81.75 | Cold-extruded universal joint with steel bearing cups. Retention method and grease-fitting position to be confirmed. |
| 30.18 x 81.75 | Steel bearing cups | Hot forged | Dynamic Support GU3082 | 30.18 x 81.75 | Hot-forged universal joint with steel bearing cups; supplier specifies 26.3 mm thickness (measurement location to be confirmed). |
| 30.18 x 92.08 | Steel bearing cups | Cold extruded | GMB GU-2200; Hardy Spicer K5-A18R | GMB: 30.18 x 92.08; Hardy Spicer: 30.2 x 92.08 | Cold-extruded universal joint with steel bearing cups. Confirm cup diameter, retention method and lubrication arrangement. |
| 30 x 92.08 | Steel bearing cups | Cold extruded | To be matched by drawing | 30 mm cup-diameter version. Keep separate from 30.18 mm products; supply against confirmed dimensions and retention details. | |
| 30.18 x 106.36 | Steel bearing cups | Cold extruded | GMB GU-2000 / GU-2050; YAC 330 (5-160X reference) | GMB / YAC: 30.18 x 106.30 | Cold-extruded universal joint with steel bearing cups. Span differs from reference catalogues; confirm tolerances and bearing-cup details. |
| 30 x 106.36 | Steel bearing cups | Cold extruded | To be matched by drawing | 30 mm cup-diameter version. Keep separate from 30.18 mm products; supply against confirmed dimensions and retention details. |
Additional information
| Cup diameter (supplier marking) | 24.06 mm |
|---|---|
| Overall span (supplier marking) | 88 mm |
| Retention type | Staked / Crimped |
| Manufacturing process | Hot forged |
