Dana Spicer 5-263X is a 1480 Series greaseable heavy-duty universal joint with a bearing cap diameter of 1.375″ (34.9mm) and an overall width of 4.188″ (106.4mm). Fits a wide range of heavy trucks and commercial vehicles. Direct replacement for 5-188X, 15-188X, and numerous OEM cross references including Volvo, Navistar, Komatsu, and International Harvester applications.
34.9×106.3 Universal Joint | 5-188X 5-263X 351 1480 Series
Description
34-9×106-3-universal-joint-5-188x-5-263x

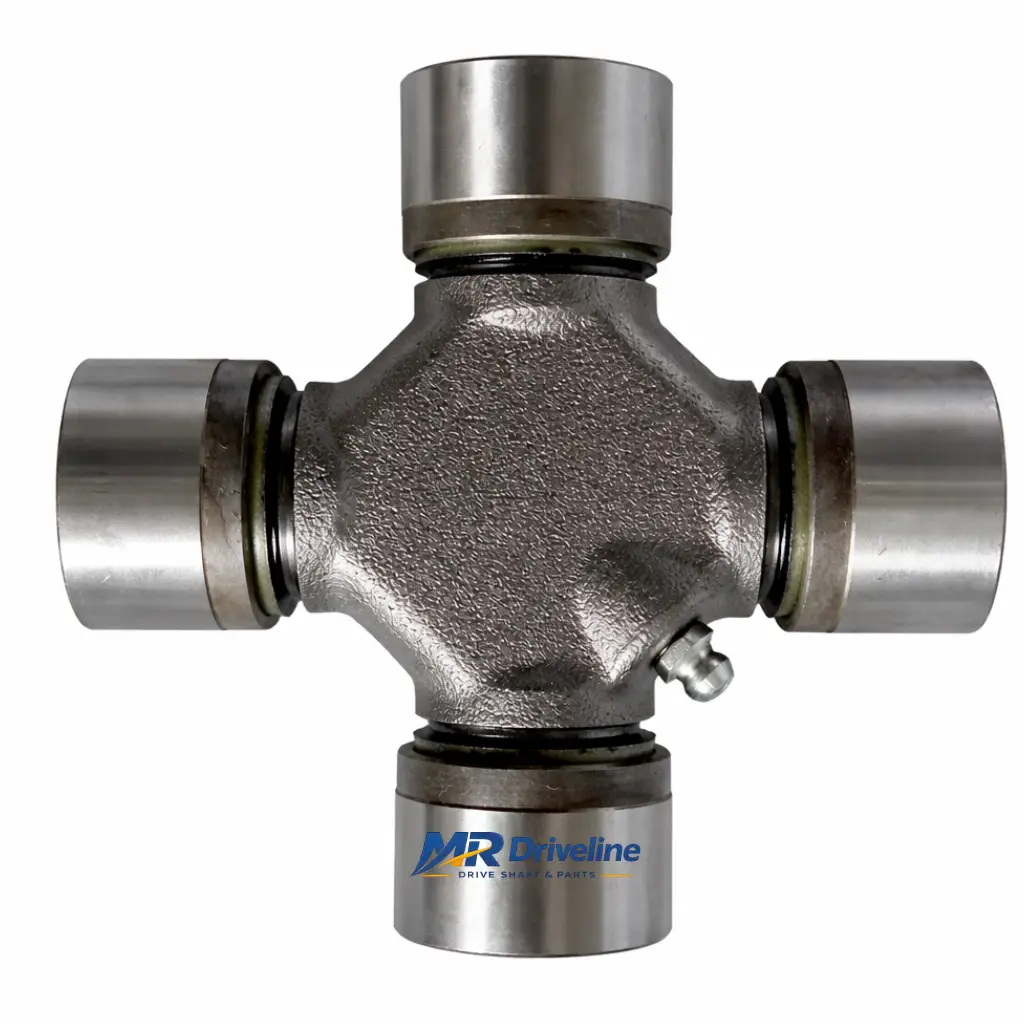

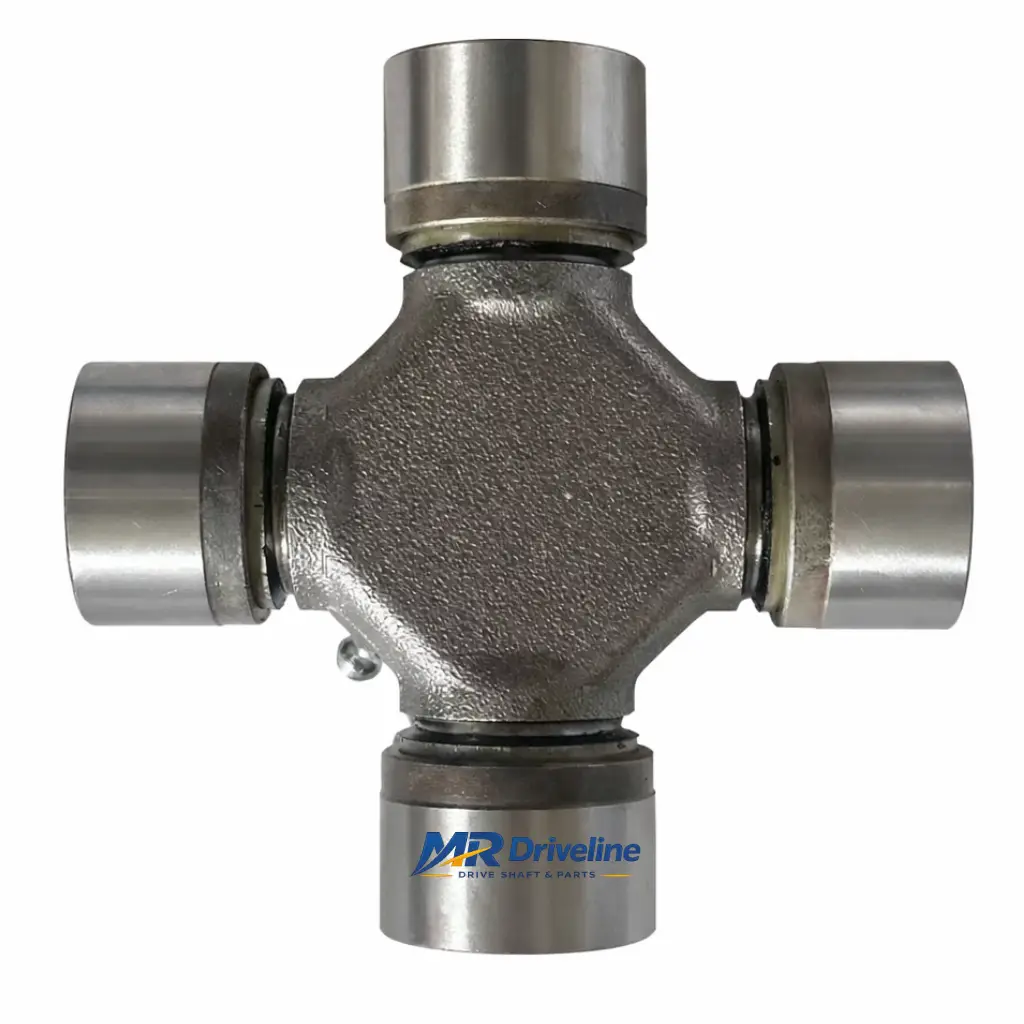

34.9×106.3 Universal Joint is an outer lock type universal joint assembly widely used in driveline, propshaft and cardan shaft systems. This size is commonly cross referenced with 5-188X, 5-263X, 351 and 1480 Series, making it a practical replacement option for aftermarket repair and industrial transmission applications.
With a bearing cup diameter of 34.9 mm and an overall width of 106.3 mm, this universal joint is designed for stable torque transmission and reliable performance under heavy duty working conditions. It can be supplied in greaseable or non-greaseable version according to customer requirements.
Our 34.9×106.3 Universal Joint is manufactured from high strength alloy steel and processed with strict quality control to ensure wear resistance, dimensional accuracy and long service life. It is suitable for replacement and maintenance use in selected truck, machinery and industrial shaft applications.
Specifications
- Product Name: Universal Joint Assembly
- Size: 34.9 x 106.3 mm
- Lock Type: Outer Lock
- Bearing Cup Diameter: 34.9 mm
- Overall Width: 106.3 mm
- Cross Reference: 5-188X, 5-263X, 351
- Series: 1480 Series
- Application: Propshaft, Driveline, Cardan Shaft
- Material: Alloy Steel
- Grease Type: Greaseable / Non-greaseable available
Product Features
- Accurate size: 34.9×106.3mm
- Outer lock structure
- Stable performance in heavy duty transmission systems
- Interchangeable with 5-188X / 5-263X / 351 / 1480 Series
- OEM production based on drawing or sample
- Suitable for aftermarket replacement and industrial use
Please confirm cup diameter, overall width, lock type and grease fitting position before ordering.
