Hardness:58 – 64 HRC
Material:20Cr or 20CrMnTi
Type: Wing Style / Wing Bearing
Operating Angle: 25-30 degree
Application: Manufacturing Plant, Machinery Repair Shops
Warranty:one year
High Quality 5-2117X U-joint Cross Kit
Description
U-joint / Cruzeta / Cruceta / Cross Joint / Journal Cross / U J Cross / Universal Joint
5-2117X 33.34x79mm Universal Joint with 4 Wing Bearings with high quality and reasonable price.
Logo can be made in the cross body or bearing cap.
Free samples can be sent to you.

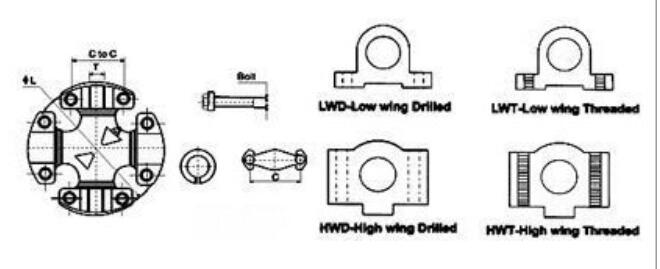

These are the U*Joint with 2 Welded Plate And 2 Wing Bearings
We have sent many items to the USA,European,Turkey,Brazil,Thailand.
Large quantity in stock.
| Type | Caterpillar | Dmm | L mm | Spicer No | Precision | Rockwell | GKN | Alloy | Neapcon | Other No | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G | 644683 | 33.34 | 79 | 5-2002X | 951 | CP2002 | HS520 | 1-2171 | 114-2110 | 2C | |
| G | 316117 | 33.34 | 79 | HS521 | 1-2186 | 114-2186 | 2C | ||||
| G | 316116 | 33.34 | 79 | HS522 | 1-2185 | 114-2185 | 2C | ||||
| G | 644683 | 33.34 | 79 | 5-2002X | 951 | CP2002 | HS520 | 1-2171 | 114-2110 | 2C | |
| G | 33.34 | 79 | 994 | 114-2117 | 2C | ||||||
| G | 6S6902 | 33.34 | 79 | 5-2116X | 952 | CP2116 | 1063 | 114-2116 | 2C | ||
| G | 5D9153 | 36.5 | 90.4 | 5-3000X | HS530 | 3-3152 | 5D3248 | 3C | |||
| G | 9K1976 | 36.5 | 90.4 | 5-3014X | 535 | HS532 | 2V1164 | 3C | |||
| G | 6K316 | 36.5 | 108 | 5-4143X | 969 | HS545 | 1689 | 3-4143 | 5K5012 | 4C | |
| G | 6F7160 | 36.5 | 108 | 5-4002X | 540 | CP4002 | HS540 | 1703 | 3-4138 | 1K9467 | 4C |
| G | 9K3969 | 36.5 | 108 | 5-4123X | 541 | CP4101 | HS542 | 1704 | 3-4123 | 5H445 | 4C |
| G | 5M800 | 36.5 | 108 | 5-4140X | 929 | CP4130 | HS543 | 3-4140 | 114-4110 | 4C | |
| G | 36.5 | 108 | 549 | 1708 | 114-4105 | 4C | |||||
| G | 7M2695 | 36.5 | 108 | 996 | 114-4141 | 4C | |||||
| G | 2K3631 | 42.88 | 115.06 | 5-5177X | 968 | CP5177 | HS555 | 1728 | 4-5177 | 5T8739 | 5C |
| G | 7J5251 | 42.88 | 115.06 | 5-5000X | 550 | CP5122 | HS550 | 1720 | 4-5122 | 7J5241 | 5C |
| G | 7J5245 | 42.88 | 115.06 | 5-5121X | 552 | CP5101 | HS552 | 1721 | 4-5127 | 114-5101 | 5C |
| G | 42.88 | 115.06 | 5-5173X | 933 | HS553 | 1722 | 4-5173 | 114-5102 | 5C | ||
| G | 42.88 | 115.06 | 999 | 114-5105 | 5C | ||||||
| G | 42.88 | 115.06 | 114-5139 | 5C | |||||||
| G | 643633 | 42.88 | 140.46 | 5-6102X | 563 | CP62N-13 | HS563 | 1822 | 4-6114 | W90-3 | 6C |
| G | 641152 | 42.88 | 140.46 | 5-6000X | 560 | CP62N-47 | HS560 | 1820 | 4-6143 | 114-6100 | 6C |
| G | 1S9670 | 42.88 | 140.46 | 5-6106X | 905 | CP62N-49 | HS565 | 1826 | 4-6128 | 7K3526 | 6C |
| G | 42.88 | 140.46 | 564 | 1823 | 4-6103 | 114-6103 | 6C | ||||
| G | 42.88 | 140.46 | 566 | 1824 | 4-6104 | 114-6104 | 6C | ||||
| G | 42.88 | 140.46 | 114-6149 | 6C | |||||||
| G | 6H2577 | 49.2 | 148.38 | 5-7105X | 927 | CP72N-31 | HS575 | 1840 | 5-7126 | U7105 | 7C |
| G | 8F7719 | 49.2 | 148.38 | 5-7000X | 570 | CP72N-32 | HS570 | 1841 | 5-7205 | 114-7100 | 7C |
| G | 7J5242 | 49.2 | 148.38 | 5-7202X | 574 | CP72N-33 | HS573 | 1843 | 5-7207 | 114-7102 | 7C |
| G | 49.2 | 148.38 | 575 | CP72N-55 | 5-7208 | 114-7103 | 7C | ||||
| G | 49.2 | 148.38 | 572 | CP72N-34 | 1842 | 5-7206 | 114-7101 | 7C | |||
| G | 49.2 | 148.38 | 576 | CP72N-57 | 5-7209 | 114-7104 | 7C | ||||
| G | 6H2579 | 49.2 | 206.32 | 5-8105X | 928 | CP78WB-2 | HS585 | 1850 | 6-8113 | 1M8804 | 8C |
| G | 49.2 | 206.32 | 5-8200X | 581 | CP82N-28 | 1851 | 6-8205 | 114-8200 | 8C | ||
| G | 49.2 | 206.32 | 5-8201X | 582 | CP82N-30 | 1852 | 6-8206 | 114-8201 | 8C | ||
| G | 49.2 | 206.32 | 5-8202X | 583 | CP82N-29 | 1853 | 6-8207 | 114-8202 | 8C | ||
| G | 49.2 | 206.32 | 584 | CP82N-47 | 1854 | 6-8208 | 114-8203 | 8C | |||
| G | 49.2 | 206.32 | 6-8209 | 114-8204 | 8C | ||||||
| G | 2V7153 | 71.8 | 165 | 5-8516X | 963 | CP85WB-1 2 | HS685 | CT-53 | 8.5C | ||
| G | 7K442 | 71.8 | 165 | 5-8500X | 785 | CP85WB-1 3 | HS680 | 6-8500 | 1V3639 | 8.5C | |
| G | 71.4 | 165 | 8.5C | ||||||||
| G | 71.4 | 165 | 8.5C | ||||||||
| G | 71.4 | 165 | 8.5C | ||||||||
| G | 9V7710 | 71.4 | 209.52 | 5-9001X | 911 | CP88WB-6 | HS595 | 1868 | 6-9016 | 7H3958 | 9C |
| G | 71.4 | 209.52 | 5-9000X | 903 | CP88WB-9 | 6-9014 | 9C | ||||
| G | 71.4 | 209.52 | 904 | CP92N-15 | 1866 | 6-9015 | 9C | ||||
| G | 71.4 | 209.52 | 5-9002X | 912 | CP88WB-1 0 | 1867 | 6-9017 | 9C | |||
| G | 71.4 | 209.52 | 919 | CP92N-14 | 9C | ||||||
| G | 8P8132 | 92.1 | 212.7 | HS605 | WS16S-2 | 10C | |||||
| G | 92.1 | 212.7 | 988 | 114-10003 | 10C | ||||||
| G | 88.9 | 222.17 | 490 | 11C | |||||||
| G | 46 | 135.2 | CP58WB | 4-5800 | GUTC-2 | ||||||
| G | GUIS-67 | 56 | 174 |
We have more automotive u-joints,pls check here to have a view,also welcome to visit our facebook page.
