53×135 mm serviceable universal joint for selected Mercedes-Benz truck and bus propeller shafts. Features a central grease fitting and external circlip retention. Cross references include U993, GU7610, CEI 133.090, 286.37 and Mercedes-Benz OE 6204100131.

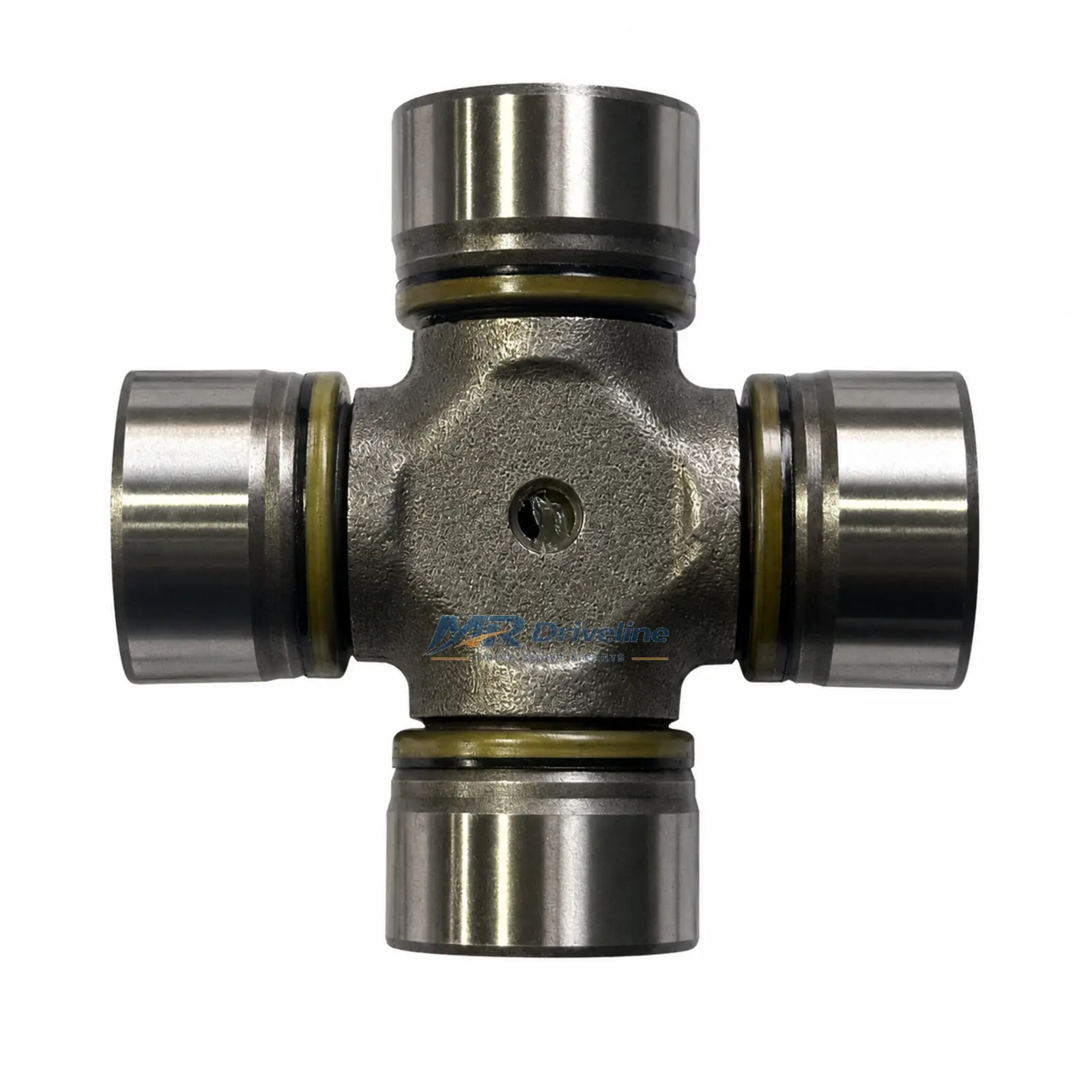

53×135 Universal Joint U993 / GU7610 for Mercedes-Benz Trucks
Description
53×135 Universal Joint Overview
The 53×135 universal joint is a serviceable heavy-duty propeller shaft cross designed for selected Mercedes-Benz trucks and buses. It features a 53 mm bearing cup diameter, 135 mm overall span, external circlip retention and central grease lubrication.
This universal joint corresponds to the 158B / 186.37–286.37 dimensional family and is commonly identified by references including U993, GU7610, SICIT 1600 and CEI 133.090. It is suitable for replacement and aftermarket driveshaft applications where the dimensions, lubrication design and OE number match.
Product Features
- 53 mm precision bearing cup diameter
- 135 mm overall installed width
- Central grease fitting for periodic lubrication
- External circlip retention design
- Four needle roller bearing cups
- Supplied with four retaining circlips and one grease nipple
- Designed for selected Mercedes-Benz commercial vehicle propeller shafts
- Suitable for driveshaft repair, replacement and aftermarket distribution
Technical Specifications
The following 53×135 universal joint specifications can be used for dimensional and interchange verification.
| Product Type | Universal Joint / Cardan Cross |
| Bearing Cup Diameter | 53 mm |
| Overall Width | 135 mm |
| Series | 158B / 186.37 / 286.37 |
| Lubrication | Central Grease Fitting |
| Retention Type | External Circlips |
| SICIT Reference | 1600 |
| Main Cross Reference | U993 / GU7610 / CEI 133.090 |
| Approximate Reference Weight | 3.2 kg |
Cross Reference Numbers
Use these 53×135 universal joint cross-reference numbers to compare supplier catalogues and Mercedes-Benz OE references.
| Brand / System | Reference Number |
|---|---|
| GKN / SPIDAN / LÖBRO | U993 |
| Aftermarket Size Code | GU7610 |
| SICIT | 1600 |
| CEI | 133.090 |
| EuroRicambi | 60560151 |
| AUGER | 65125 |
| FEBI BILSTEIN | 18818 |
| DT Spare Parts | 4.60389 |
| LEMA | 2790.62 |
| SAMPA | 201.027 |
| MEYLE | 034 041 9021 |
| TRUCKTEC | 01.34.013 |
| SKF Catalogue | VKUA 53135 |
Mercedes-Benz OE Numbers
0004100231, 0004101628, 3434100631, 3634100031, 3634100631, 6204100131 and 9424100131.
Vehicle Applications
This 53×135 universal joint is used on selected propeller shaft assemblies for Mercedes-Benz NG, LK/LN2, MK, SK, Atego, Axor, Actros 1, Actros 2/3, Econic, Zetros and Tourismo vehicles.
Vehicle model alone is not sufficient for final identification. Please compare the OE number, 53 mm bearing cup diameter, 135 mm overall width, external circlip design and central lubrication position before ordering.
Why Choose MR Driveline
MR Driveline supplies universal joints and propeller shaft components for commercial vehicle, industrial and aftermarket applications. We can check a replacement according to the OE number, dimensions, product photo or technical drawing before quotation.
Send your inquiry:
Email: mrdriveline@gmail.com
WhatsApp: +86 15257194902
All manufacturer names and reference numbers are used for identification and interchange purposes only.
Frequently Asked Questions
What are the dimensions of this universal joint?
The bearing cup diameter is 53 mm and the overall width across the bearing cups is 135 mm.
Is this universal joint greaseable?
Yes. This version uses a central grease fitting and is supplied with a separate grease nipple.
How should I confirm compatibility?
Match the OE or cross-reference number and then confirm the 53×135 mm dimensions, external circlip retention and central grease position.
