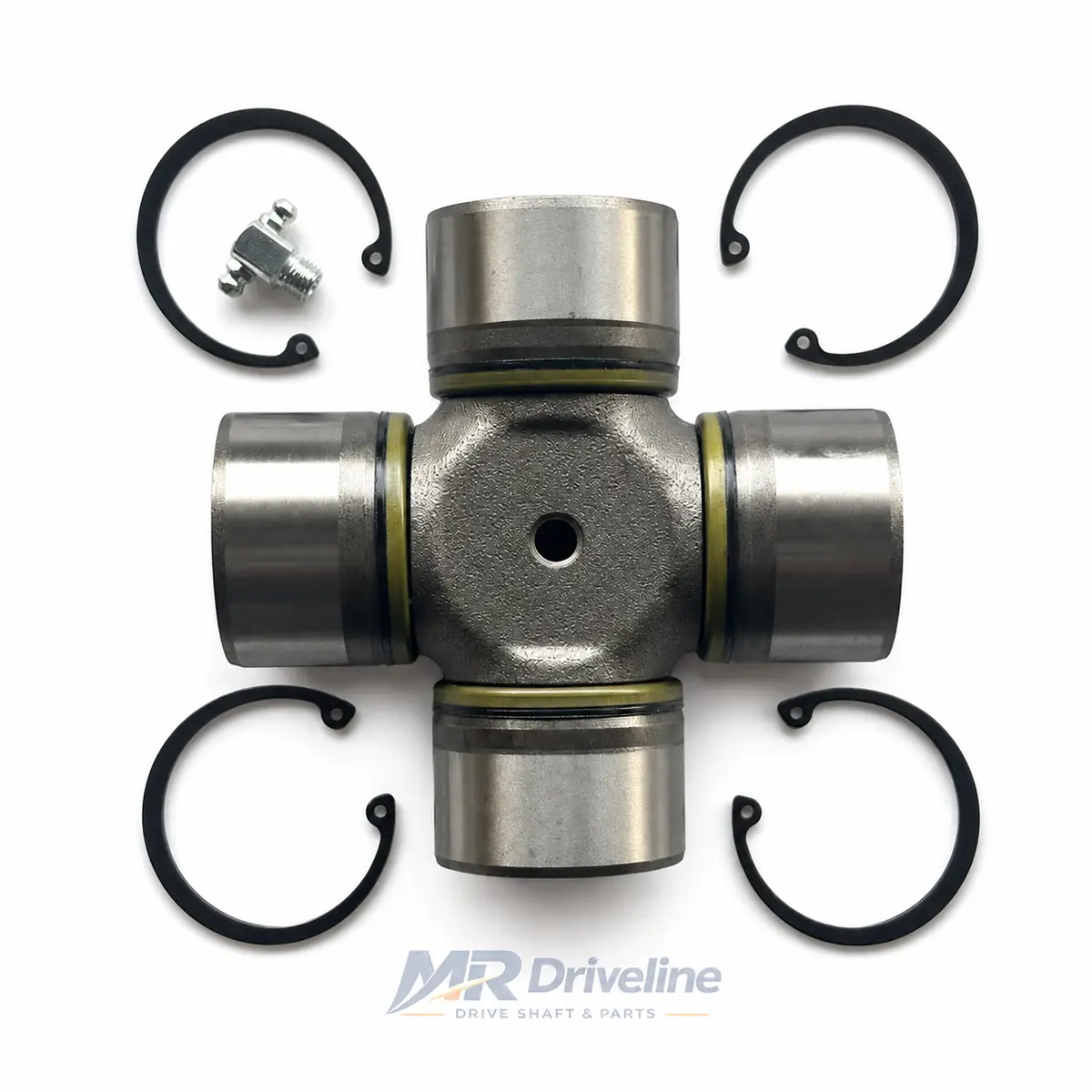

Heavy-duty 57×144 universal joint with 57 mm bearing cups and a 144 mm span over the bearing cups. The kit shown includes a central grease fitting and four retaining circlips. Common references include GU8130, HS288, GWB 587.35/36, GKN U813, CEI 133.082 and SICIT 1720. Suitable for selected IVECO, DAF, MAN, Renault and Volvo truck propeller-shaft applications. Confirm dimensions and OEM number before ordering.
57×144 Universal Joint
Description
57×144 Universal Joint for Heavy-Duty Truck Driveshafts
The 57×144 universal joint is a greaseable cross-journal joint for heavy-duty truck propeller shafts. It has a 57 mm bearing-cup diameter and a 144 mm span measured over the bearing cups, excluding circlips and accessories. This model matches the GU8130, HS288, GWB 587.35/587.36 and GKN U813 size family and is supplied as pictured with a central grease fitting and four retaining circlips.
Product Features
- Heavy-duty cross-journal design for commercial-vehicle driveshafts
- 57 mm precision-machined bearing cups
- 144 mm overall span over the bearing cups
- Central grease passage for regular lubrication
- Four retaining circlips and grease fitting included as pictured
- Needle-roller bearing construction for smooth torque transmission
- Suitable for replacement, driveshaft repair and aftermarket supply
Technical Specifications
| Product | 57×144 universal joint |
|---|---|
| Bearing Cup Diameter | 57 mm |
| Length Over Bearing Cups | 144 mm, excluding circlips and accessories |
| Lubrication | Central grease fitting |
| Retention | Four circlips |
| SICIT Series / Code | X.170 / 1720 |
| Vehicle Segment | Heavy-duty commercial trucks |
Cross Reference Numbers
The 57×144 universal joint is commonly searched under the following supplier and OEM references. Confirm the cup diameter, cup-to-cup length, grease position and driveshaft design before placing an order.
| Brand / System | Reference Numbers |
|---|---|
| GMB / Market Reference | GU8130, GU-8130 |
| GKN | U813, HS288 |
| GWB | 587.35, 587.36 |
| CEI | 133.082 |
| SICIT | 1720 |
| DAF | 0505698, 505698, 0689962, 689962 |
| IVECO / FIAT | 02980217, 093190028, 2980217, 42481507, 42491973, 42500142, 93159497, 93190028 |
| MAN | 81391086024, 81391086051, 81391266017, 81392006011, 81392006015 |
| Renault | 5000280190, 5000559743, 5000815148 |
| Volvo | 232363, 232540 |
Typical Applications
This 57×144 universal joint is used in selected IVECO, DAF, MAN, Renault and Volvo propeller shafts. Catalogued vehicle families include IVECO TurboTech, EuroStar and EuroTech; DAF F2300, F2800, F3300, F3600 and F95; MAN F90, L2000 and E2000; Renault C, G and R series; and Volvo F10, F12, N10, N12 and B10. Compatibility depends on the exact driveshaft configuration and OEM number.
For related sizes, browse our heavy-duty universal joint range or compare the 65×172 universal joint.
Why Choose MR Driveline?
MR Driveline supplies 57×144 universal joint products for replacement and driveshaft-repair requirements. Before production, we can check the size, grease position, retaining method and interchange number against your drawing, sample or OEM reference.
- Dimension and interchange-number confirmation
- OEM and private-label packaging support
- Drawing, sample and OEM-reference matching support
- Export packing and worldwide shipment coordination
Frequently Asked Questions
What are the dimensions of the 57×144 universal joint?
The bearing-cup diameter is 57 mm and the span measured over the bearing cups is 144 mm, excluding the circlips and accessories.
Which references match this 57×144 universal joint?
Common search and interchange references include GU8130, HS288, GWB 587.35/587.36, GKN U813, CEI 133.082 and SICIT 1720. OEM references vary by truck brand and driveshaft configuration.
Does the 57×144 universal joint include a grease fitting and circlips?
Yes. The standard kit shown in the product image includes one central grease fitting and four retaining circlips.
How should I confirm compatibility?
Send the OEM number, driveshaft drawing or clear measurements of the bearing-cup diameter and cup-to-cup length. We will compare them with the 57×144 universal joint before quotation or production.
