3102-2201025 universal joint with 30 mm bearing cups, 55 mm inside-circlip lock-up and 88 mm overall span. Cross references include UJ3110, 3088, 31029-2201026, 69-2201025, 469-2201025 and BJ212. Suitable for dimension-matched GAZ, UAZ, Volga and Gazelle propeller-shaft service; verify all three measurements and the internal retaining-ring style before ordering.
3102-2201025 UJ3110 3088 Universal Joint 30×55×88 mm | GAZ UAZ BJ212
Description
3102-2201025 universal joint is a greaseable inside-circlip cross bearing for selected GAZ, UAZ, Volga, Gazelle and dimension-matched BJ212 driveline applications. Its identifying measurements are a 30 mm bearing-cup diameter, 55 mm distance between the inner retaining faces and 88 mm total cup-to-cup span. All three values must be checked together.

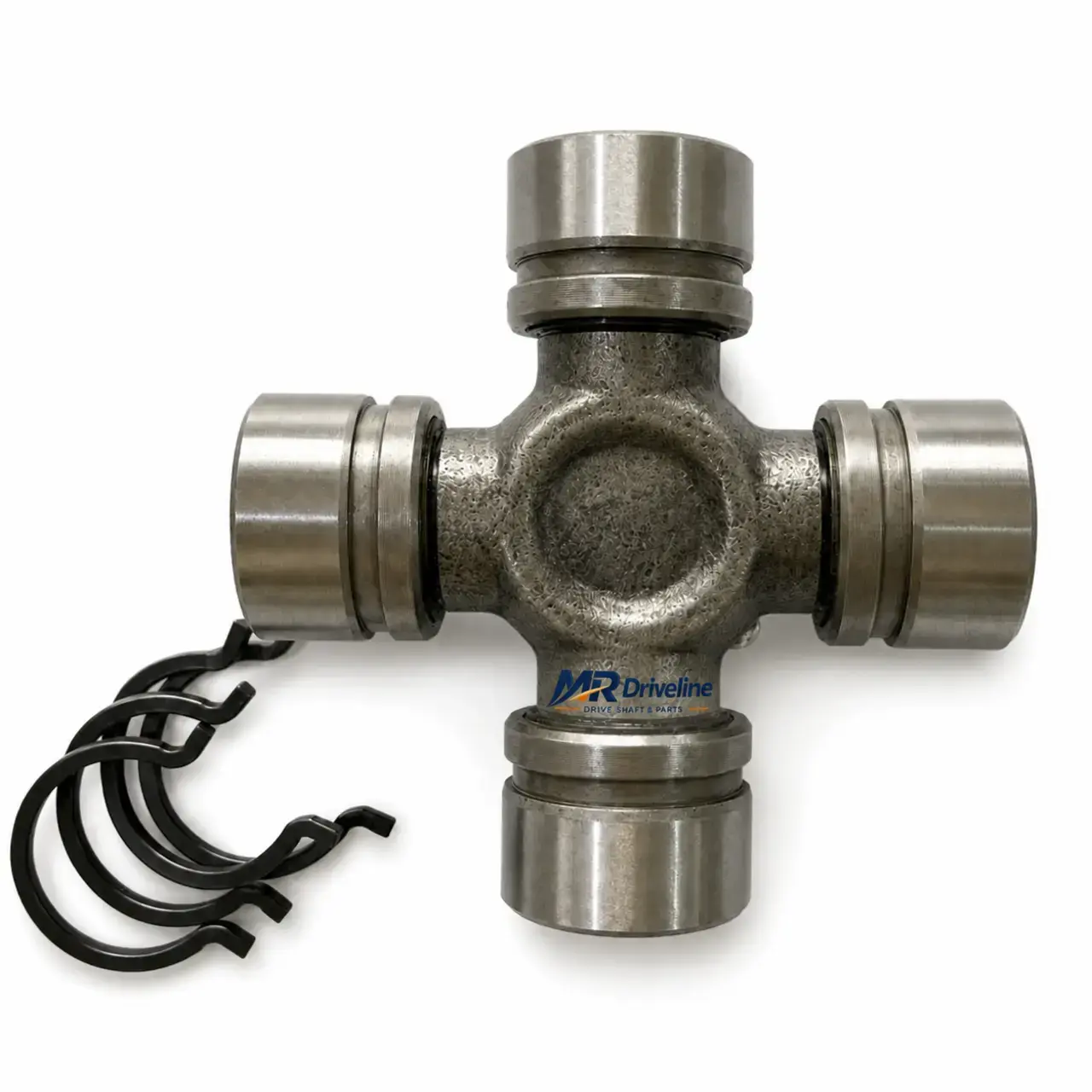

The photographed 3102-2201025 universal joint is supplied as one assembled cross with four bearing cups and four bent-tab internal retaining rings. The rings fit inside the yoke bores after the cups are pressed into place. This retention method differs from common external-circlip joints, even when the cup diameter appears similar.
Product Features
MR Driveline prepares the 3102-2201025 universal joint for replacement and propeller-shaft repair work where reliable dimension matching is required. The machined bearing cups, needle-bearing construction and serviceable grease point support regular driveline maintenance.
- 30 mm nominal bearing-cup outside diameter.
- 55 mm inside-circlip lock-up measurement.
- 88 mm overall span across opposite cup ends.
- Four internal retaining rings with bent installation tabs.
- Greaseable construction for scheduled servicing.
Technical Identification
The 3102-2201025 universal joint is also searched under UJ3110, 3088, 31029-2201026, 31029-2201025, 69-2201025, 469-2201025, UJ69 and BJ212 references. Catalogues may describe the same dimensional family as 30×55×88 mm or 30×55(88) mm. Reference numbers help sourcing, but dimensions and circlip position remain the final fitment checks.
| Primary reference | 3102-2201025 |
|---|---|
| Additional references | UJ3110, 3088, 31029-2201026, 69-2201025, 469-2201025, UJ69, BJ212 |
| Bearing-cup diameter | 30 mm |
| Inside lock-up | 55 mm |
| Overall span | 88 mm |
| Retention | Four internal circlips |
| Lubrication | Greaseable |
Applications and Cross-Reference
The 3102-2201025 universal joint is commonly associated with Russian and CIS vehicle driveline service, including selected GAZ, UAZ, Volga and Gazelle propeller shafts. It can also be evaluated for BJ212 shafts that use the stated dimensions and internal-ring arrangement. Browse our Russian vehicle universal joint range for related sizes.
Do not identify the 3102-2201025 universal joint by vehicle name alone. Shaft production changes, replacement yokes and regional variants can alter the required joint. A 30×55.1×85 mm GUM-93 or MB000267 joint is a different size and should not be substituted merely because its cup diameter is close.
How to Verify Fitment
Before ordering a 3102-2201025 universal joint, measure one cup with a caliper. Then measure 55 mm between the inner circlip seating faces and confirm the complete 88 mm span across the opposing cup ends. Compare the ring-groove position, cup shoulder, seal profile and grease-fitting clearance with the removed part.
During installation, clean the yoke bores and inspect them for distortion. Press each cup evenly so the needle rollers remain upright, install all four retaining rings completely, and check that the cross moves freely without binding or unwanted axial play. Apply the lubricant and service interval specified for the shaft.
Ordering Information
For a 3102-2201025 universal joint quotation, provide the required quantity, vehicle or propeller-shaft reference, the three measured dimensions and clear photos of the old joint. MR Driveline can review samples and drawings before order confirmation and discuss packing, production and delivery requirements.
Frequently Asked Questions
Does 30×55 mean the full width?
No. For this 3102-2201025 universal joint, 55 mm is the inside-circlip lock-up; the total cup-to-cup span is 88 mm.
Are four internal retaining rings included?
The product image shows four rings. Confirm final kit contents on the quotation or purchase order.
Contact MR Driveline for 3102-2201025 universal joint dimensional verification, cross-reference support and export quotation.
Additional information
| Brand | MR Driveline |
|---|---|
| Bearing Cup Diameter | 30 mm |
| Inside Circlip Lock-up | 55 mm |
| Overall Span | 88 mm |
| Cross References | 3102-2201025, UJ3110, 3088, 31029-2201026, 31029-2201025, 69-2201025, 469-2201025, UJ69, BJ212 |
