Scania 57.1×164 Slip Assembly for Heavy-Duty Driveshaft
Description

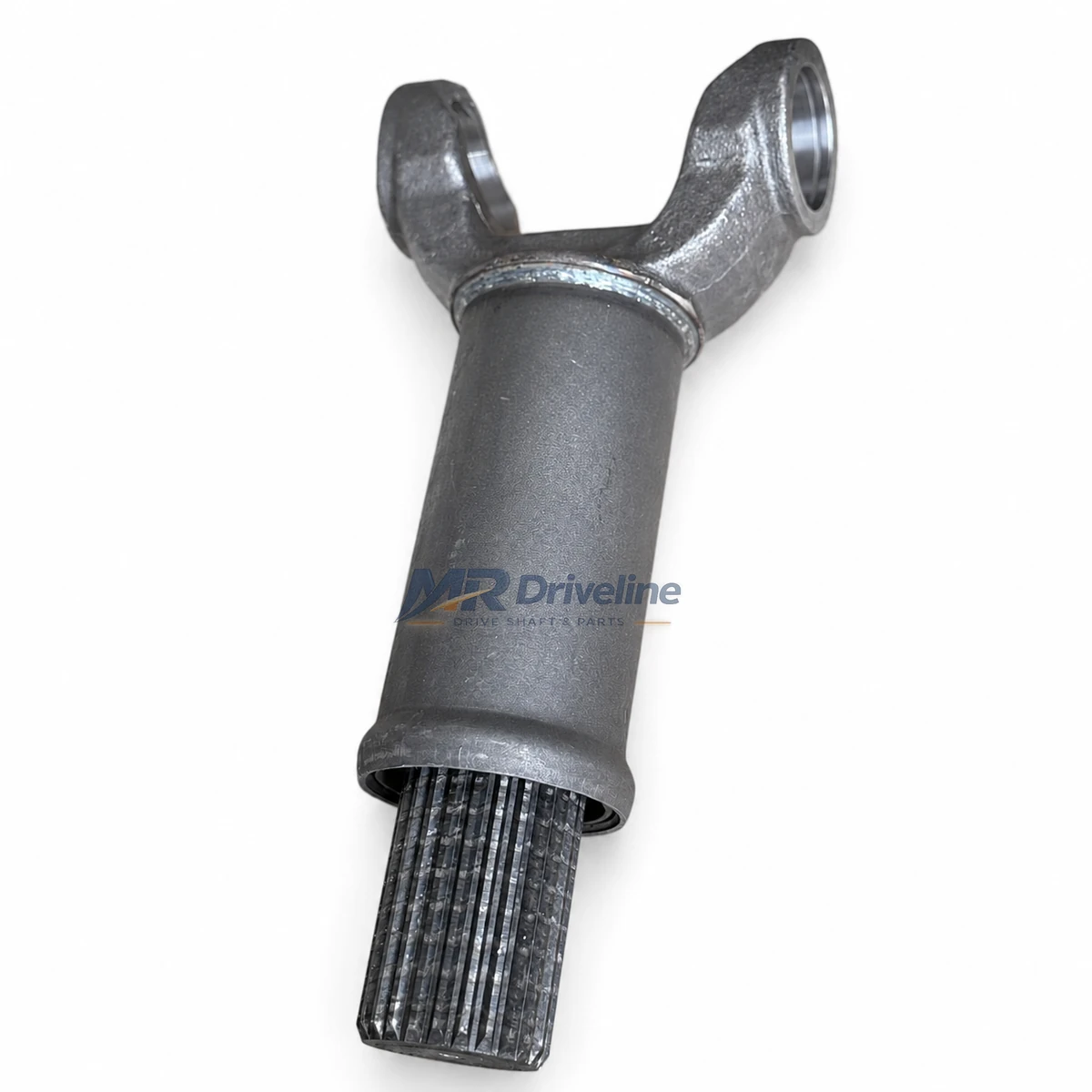

Scania 57.1×164 slip assembly
Product Overview
The Scania 57.1×164 slip assembly is an application-focused driveshaft component for Scania cardan shafts using the 57.1×164 mm universal-joint family. It combines a fork yoke, sleeve section and male sliding spline so the propeller shaft can compensate for changes in operating length while transmitting torque.
The same universal-joint family is also commonly listed as 57×164 mm. This Scania 57×164 slip assembly is suitable for replacement, repair and new shaft production only when the spline, fork geometry, working length and tube connection match the original component.
Technical Specifications
| Product type | Driveshaft slip assembly / sliding spline assembly |
|---|---|
| Application reference | Scania heavy-duty driveshaft; exact shaft variant must be confirmed |
| Matching universal-joint family | 57.1×164 mm; also catalogued as 57×164 mm |
| Main construction | Fork yoke, sleeve section and male spline shaft |
| Spline and working length | Must be confirmed from drawing or sample |
| Tube connection | Must be confirmed before production |
| Brand | MR Driveline |
OEM / Equivalent Models
The matching 57.1×164 mm universal-joint family is commonly cross-referenced as CEI 133.052 and Scania references 1541071, 1750309, 1765824, 1765830, 1766467, 1797425, 1797426, 1879540, 2397362, 337060, 366437, 366443 and 390225. These references identify the matching universal-joint family only; they are not confirmed OE numbers for this slip assembly.
The 57.1×164 mm size does not determine the spline count, spline diameter, closed length, travel or tube connection of a 57.1×164 driveshaft slip assembly. Final production must follow a customer drawing, measured sample or complete dimensional data.
Dimensions to Verify Before Ordering
- Bearing-cup bore diameter and fork span
- Male and female spline count
- Major and minor spline diameters
- Closed length, extended length and effective travel
- Sleeve outside diameter and seal arrangement
- Tube outside diameter, wall thickness and connection type
- Grease fitting position and phasing requirement
Similar Models and Matching Components
| Related component | Identification |
|---|---|
| Scania weld yoke | For 57.1×164 mm universal-joint family; tube connection must be confirmed |
| Universal-joint cross kit | 57.1×164 mm / commonly listed as 57×164 mm |
| Matching flange yoke | Flange drawing and hole pattern required |
Why Dimensional Confirmation Matters
Scania driveshafts can use different tube, spline and flange configurations even when the same nominal universal-joint size is listed. Confirming the details above avoids incorrect spline engagement, insufficient slip travel, fork interference and driveline vibration. For the fastest check, send one dimensioned drawing plus clear photos of both spline ends.
FAQ
Is this slip assembly confirmed for every Scania driveshaft?
No. Scania is the application reference and 57.1×164 mm identifies the matching universal-joint family. The actual shaft build must be checked by dimensions, shaft number or sample.
Does 57.1×164 mm describe every slip-assembly dimension?
It describes the associated universal-joint cross size. The spline and length specifications are separate and must be provided.
Can MR Driveline manufacture from a sample?
Yes. A drawing is preferred, but a measured sample and detailed photographs can be used for engineering confirmation.
Request a Quotation
Send the required quantity, complete driveshaft reference, spline measurements and working length. We will check the Scania 57.1×164 slip assembly configuration before quotation.
Additional information
| Brand | MR Driveline |
|---|---|
| Application Reference | Scania driveshaft; exact shaft variant to be confirmed |
| U-Joint Size | 57.1×164 mm (also listed as 57×164 mm) |
| Product Type | Slip Assembly |
| Verification | Spline, working length and tube connection to be confirmed |
